Connecting a Wi-Fi camera using a QR code

Last update: 17.11.2026
  1. Which cameras can be connected using a QR code?
  2. Connecting a camera via a QR code:
    1. using the Personal Account on our site;
    2. using the Ivideon mobile app.

1. The cameras that can be connected using a QR code are:

  • iLuv mySight
  • iLuv mySight 2K
  • Nobelic NBQ-1110F
  • Nobelic NBQ-1210F
  • Nobelic NBQ-1210F/b
  • Nobelic NBQ-1310F
  • Nobelic NBQ-1410F
  • Nobelic NBQ-4100F
  • Ivideon Cute
  • Ivideon Cute 2
  • Ivideon Cute 3
  • Ivideon Cute 4
  • Ivideon Cute 4L
  • Ivideon Cute 4LS
  • Ivideon Solaris
  • Ivideon Cute 360
  • Ivideon-131-S
  • Ivideon Leo 360
  • Oco 1
  • Oco 2
  • Oco HD
  • Oco Motion
  • Oco Simple
  • Philips M120E
  • Samsung SNH-1011

NB! Other wireless cameras (with an Ethernet port available) must first be connected with a network cable, added to an Ivideon account, and only then switched to a Wi-Fi network.

2. How do I connect a camera via a QR code?


Before connecting the camera:

  • Make sure the network you are using has internet access;
  • Check the frequency of your Wi-Fi network – most cameras can only work at 2.4 GHz;
  • Make sure that the camera connects with a power supply of the required wattage. Information about the necessary characteristics of the cameras’ power supply can generally be found in its instruction manual;
  • Write down the password for the Wi-Fi network.

Please mind that connecting a Wi-Fi camera with Ivideon to public/enterprise Wi-Fi networks which require authorization via a mobile phone number is not possible.


2.1. How can I connect my camera using a QR code through my Personal Account?


  • After logging into your Personal Account on my.ivideon.com, click the Connect device button:
uMh6zIJlOpOhiMdvnB3XZk-X42Hlc9NdC-8vhwgG


  • Select the Camera option and the Via Wi-Fi connection type:
tcpMbYZmYacRAPEsf_0ynOMbQIzFpE8-4ShHWllZ


rBWGqO0z5z4bLDphH2_1ouL9psJR8vCUoNxuHCSk


  • Connect the camera to power and wait for the LED on the camera to start flashing red (or amber in case of an Oco 2 device). Then hit the Continue button:
jHUCLet72xP1v6zeZUtBeMgdRTCpY9HRnyMFuloQ


  • Enter the name and password of the Wi-Fi network you will be using and click Continue:

(make sure your Wi-Fi network is running at 2.4 GHz frequency; most of the cameras listed, except for Oco 2, do not support Wi-Fi networks that operate at a frequency of 5 GHz)

a-lJk4bpLp7OUSo50ycpA6P-qa9_maDchco_z9YD


  • Show the QR code into the camera lens. If necessary, you can send a QR code to any e-mail address and then show it to the camera from another device. When the camera recognizes the QR code, there will be a beeping sound, and the LED will change to flashing green.
HHv6Gc_I8A5O6RbY_XuYstnOL__9FeCs1jbxwADl


  • Wait for the camera to attempt the connection to the cloud:
lC5LwKtFCXrjAAcoTmM9Z_wDAJcJzG2Vd2gERAyz


  • If the connection is successful, enter a name for the camera and click Done.
G2N2LFXtYHbztmiBXWIROLU5hON3nEEjuKQots3A


2.2. Connecting a Wi-Fi camera via the Ivideon mobile app


  • Ensure that your device is connected to the Wi-Fi network which you are planning to use for the camera’s connection;
  • In the Ivideon mobile app, log into the account you want to link the camera to;

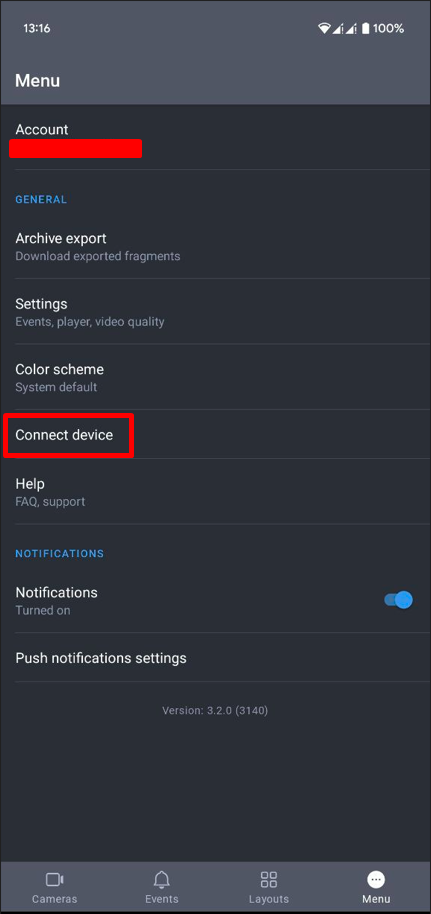

  • Pick the Menu tab in the lower right corner of the screen and select the Connect device (or Add camera) option:

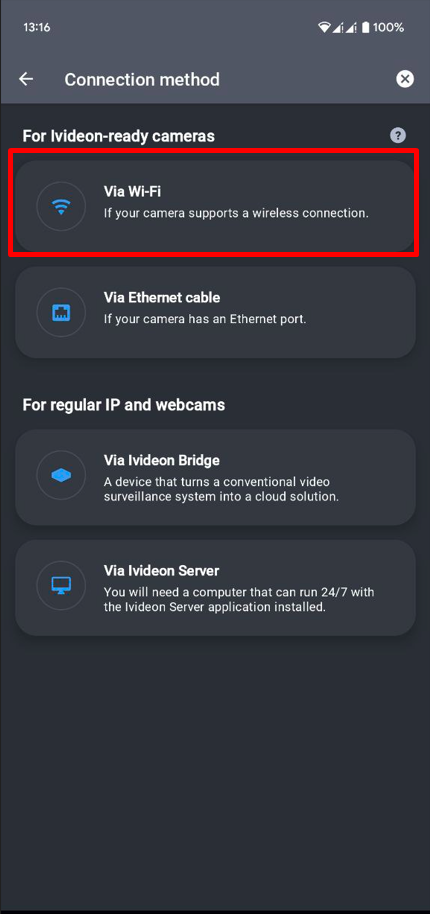

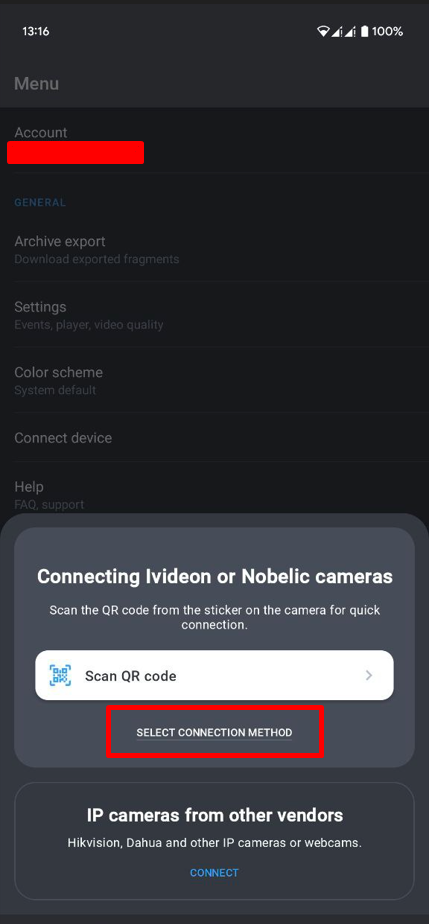

  • Choose "Select connection method" option, "Via Wi-Fi" variant.


  • Connect the power to your Wi-Fi camera and wait for it to load (about 20-30 seconds in general) – the camera will change the indication to flashing red (amber if it is Oco 2, orange if it is a Philips M120E camera);

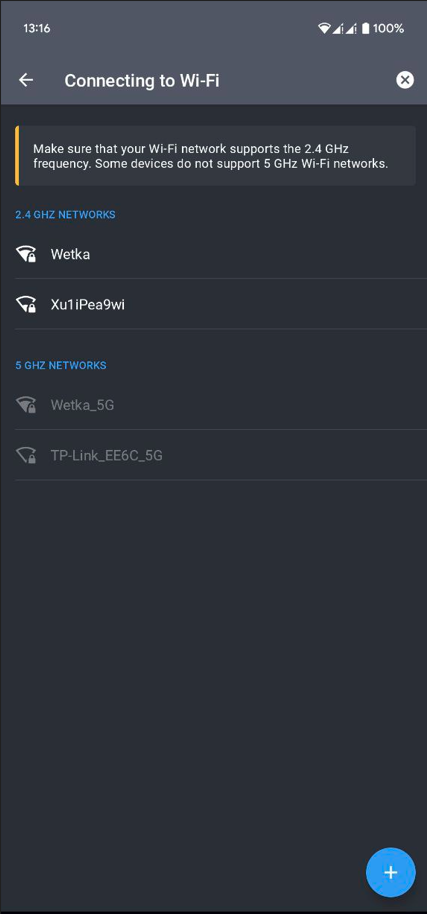

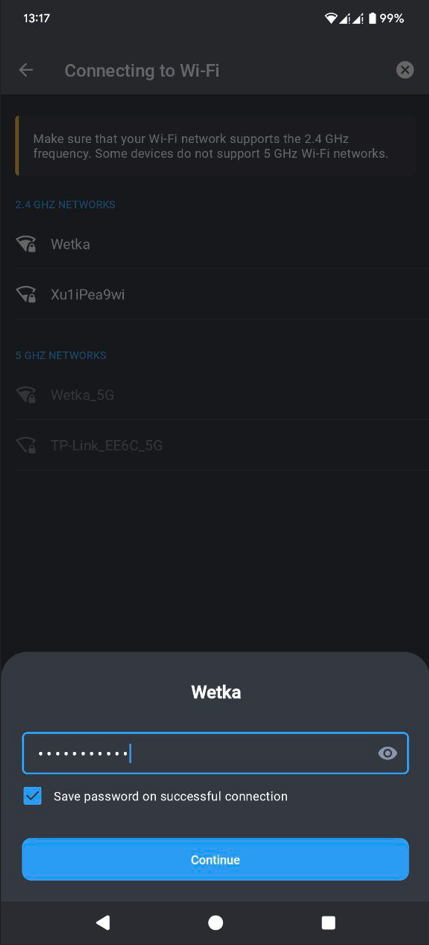

  • Turn on GPS/geolocation option on your smarphone. Pick the Wi-Fi network you will be connecting the device to and enter this network’s password into the app.

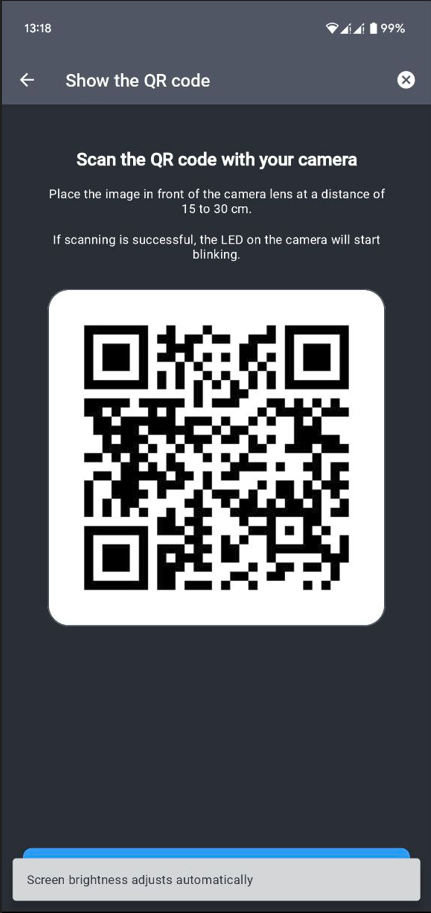

  • On the next step, you will see a QR code on your smartphone screen:


  • Place the smartphone with the QR code in front of the camera lens and show the QR code to the camera from a distance of about 6-12 inches (15-30 cm);
  • When the camera reads the QR code, a beeping sound usually occurs, the camera will change the indication to flashing green/blue and a notification will appear in the mobile application;
  • Wait until the camera connection is completed (the camera will change the light indication to a solid green/blue LED).
